DK1000 single channel intelligent AD, DA and DO temperature transmitter

Product introduction

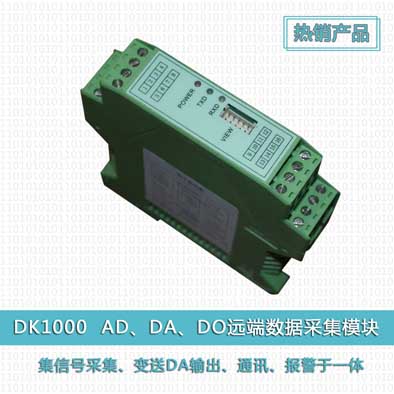

DK1000 remote data acquisition module is the intelligent module of signal acquisition, transmission, DA output, communication, alarm and other development. With high accuracy, good stability, using modular structure, flexible configuration, good linearity, strong anti-interference ability etc..

Product features

Support 24 common industrial standard signal inputs;

The output mode is optional, which supports two modes of measuring and sending and communicating DA.

With RS485 communication, the international standard MODBUS RTU communication mode is adopted.

With relay alarm module, alarm mode optional (open and close), optional relay control mode (support alarm and DO communication control action);

Compact size, easy installation, standard 35mm guide rail installation;

DC24V (+ 10%) power supply;

Signal input, power supply, variable output three terminal isolation, isolation voltage 1500V AC.

input

K

S

R

T

E

J

B

N

WRe3-WRe25

WRe5-WRe26

4 ~ 20mA

0 ~ 20mA

Cu50

PT100

0~80 Omega

0~400 Omega

0 ~ 20mV

0 ~ 100mV

0 ~ 1V

1 ~ 5V

0 ~ 5V

-20 ~ +20mV

-100 ~ +100mV

-5V ~ +5V

output

0-5, 1-5V, 0-10V, 0-10mA, 0-20mA, 4-20mA

communication

Photoelectric isolation RS-485 communication interface

alarm

1 way relay output

Other detailed parameters

Comprehensive measurement accuracy

0.1%FS + 1 words

AD precision

22 bits

AD speed

13SPS

Transmission precision

16 bits

DA speed

10M SPS

Isolation voltage

Input, output and power 1500V AC 1 minutes between the three parties.

temperature drift

50ppm

electromagnetic compatibility

GB/T 18268 (IEC61326-1)

Use of the environment

Ambient temperature: 0~50 C; relative humidity: less than 85%RH; avoid strong corrosive gases.

Power Supply

DC24V (+ 10%)

Power waste

Power consumption is less than 1.7W

Shape size

Width * height * depth: 22.5*100*112mm

structure

35mm DIN guide rail installation

Selection size

Width * height * depth: 22.5*100*112mm

Example selection

1. customers need WRe325 thermocouple signal input, output is 4-20MA transmit signal, relay as a newspaper.

For alarm purposes, the lower limit alarm temperature is 750 degrees, the upper alarm temperature is 1850 degrees, and the hand-held programmer is used.

The selection is as follows:

DK1000-WRE325-4MA20-A-Y-AL:750-AH:1850

2. customers need PT100 thermal resistance signal input, output is 0-10V voltage signal, output as communication DA to

The relay is used as a communication for a given switch quantity to output IO contacts. Other parameters are defaults.

The selection is as follows:

DK1000-PT100-0V10-D
