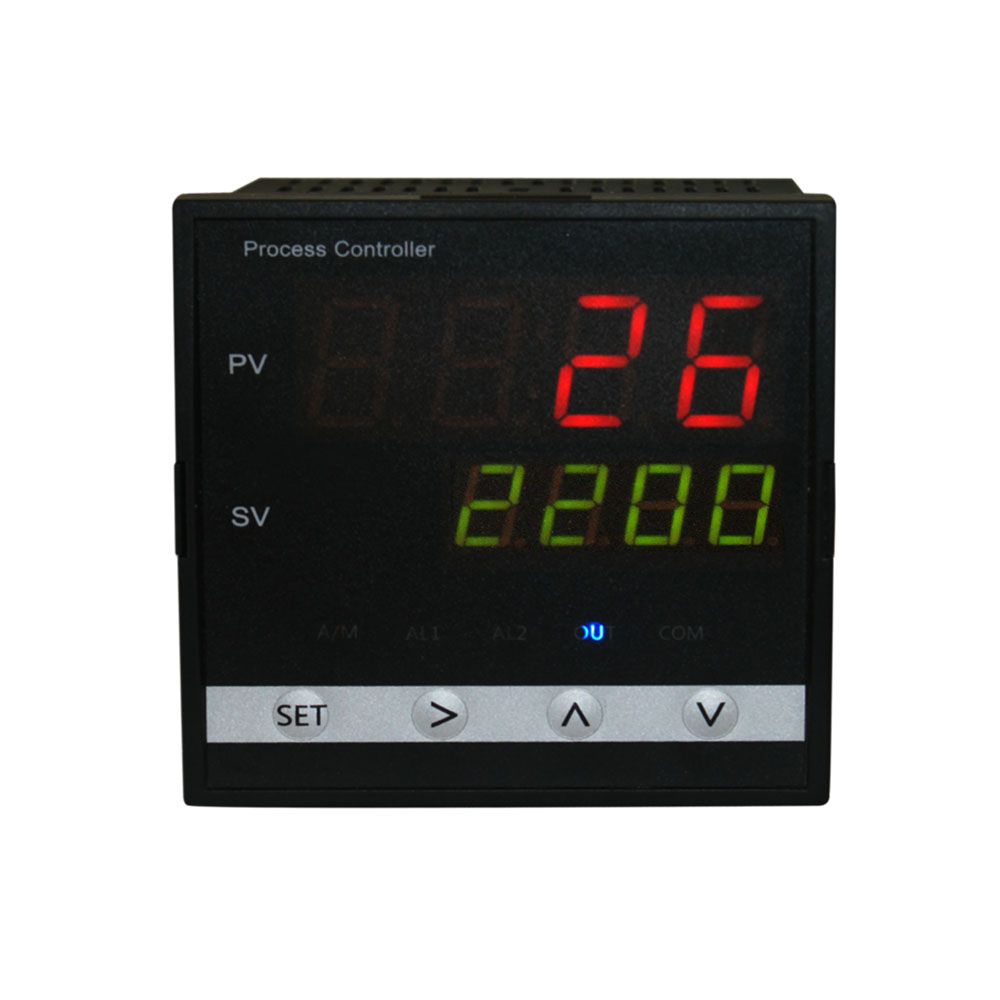

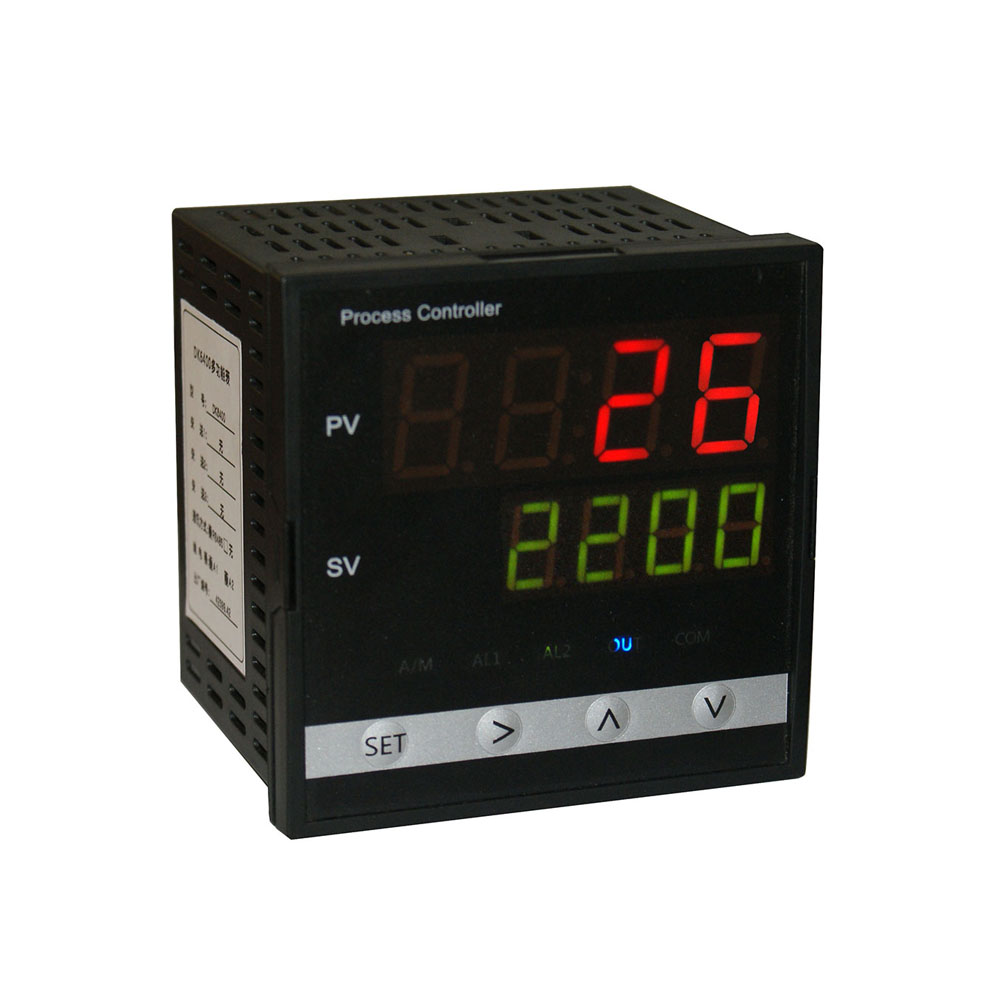

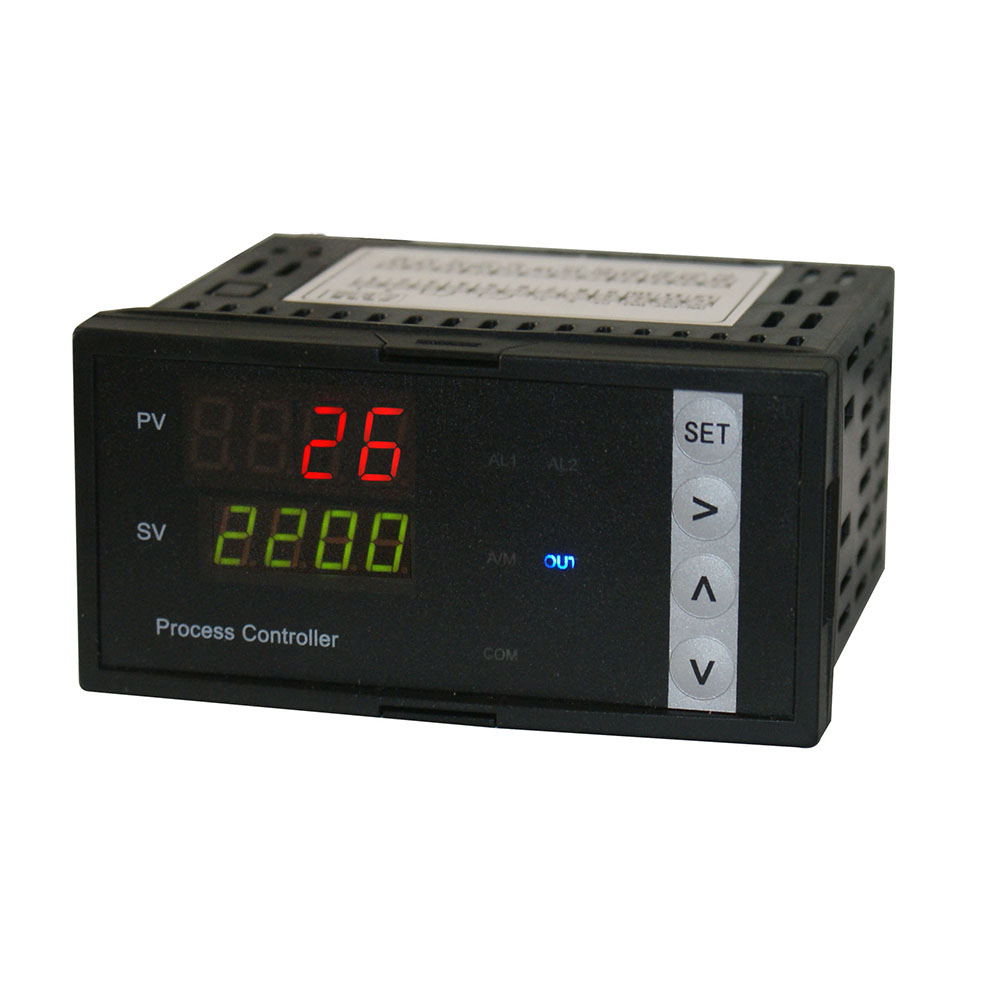

DK2200 PID controller is a single loop temperature process controller and display instrument based on advanced microprocessor technology. It can control and display process parameters such as temperature, pressure and flow. The instrument is flexible in setting, convenient in configuration and simple in operation.
Product features
General input, accept thermal resistance, thermocouple and DC signal, compatible with 29 kinds of industrial signal input.
Modular design, output free configuration
100-240V AC, 50Hz universal power supply
Multiple alarm mode
Alarm status indicator lamp
ON/OFF PID multiple control modes
Photoelectric isolation RS-485 communication interface
output
Main output: 0- linear output, 1- relay, 2- transistor, 3- SCR.
Linear signal: 0- (4-20MA), 1- (0-10MA), 2- (0-20MA)
Up to 2 outputs.
communication
Photoelectric isolation RS-485 communication interface
Call the police
2 way relay alarm
Other detailed parameters
Input signal range: 29 common industrial standard signals.
Basic error: 0.2%FS + 1 words.
Measure AD:20 bits, 13SPS
Output DA:12 bits, 100KSPS
Master output: 1 way
Alarm output: 2 routes (2216 for all alarms)
Input impedance: when the voltage is greater than or equal to 500K, the current is less than 300 ohm (external parallel 250 Ohm).
The thermal resistance is less than 0.25mA and the thermocouple is equal to or equal to 500K.
Output Impedance (with Load Capacity): Current less than 500_ (Current has special requirements, can achieve 650 Euros, set
Time of shipment) relay AC220V/2A, DC30V/1A
Display mode: digital tube
Sampling period: 0.1S (average)
Communication protocol: MODBUS RTU (RS485 interface, two wire system)
Driving distance: 1200 meters
Check mode: no check, odd check, even check.
Baud rate: 4800960019200
Communication data format: one start bit, eight bit data bits, one stop bit.
Supply voltage: AC220V
Isolation voltage: input, output, power three isolation, 2000 V AC 1 minutes.
Working conditions: temperature -20 ~ +50 C, humidity 10% ~ 90%RH
Storage conditions: temperature: -40 ~ +80 C, humidity: 10% ~ 90%RH

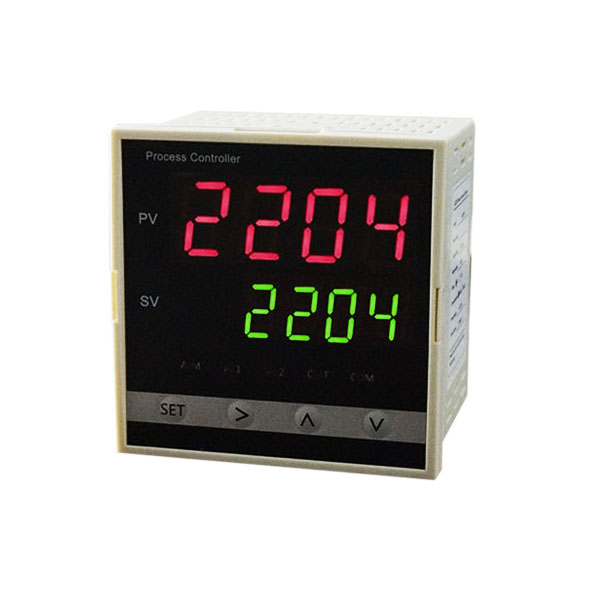

DK2204 96*96mm、

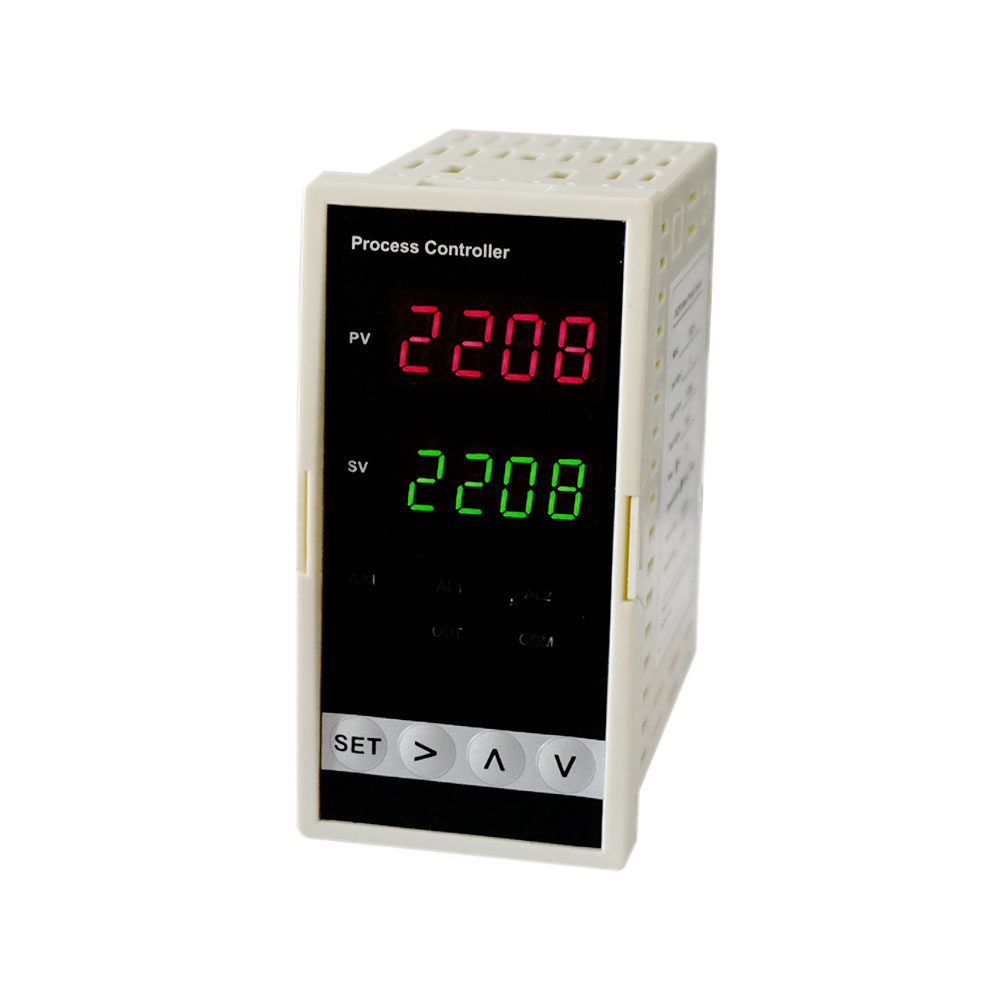

DK2208 96*48mm、
DK22H8 48*96mm、
DK2206 72*72mm、
DK2216 48*48mm、
DK22DN 75*45mm （35mm DIN-Rail Mounting）
