The DK2300S series controller includes three controllers: DK2304S, DK2308S and DK23H8S. Dual-loop process controller and display instrument based on advanced microprocessor technology can control and display process parameters such as temperature, pressure and flow. The instrument is flexible in setting, convenient in configuration and simple in operation.
Product features
It can be used as a temperature and humidity controller. It can also be used as a double input analog linear signal controller.
Modular design, output free configuration
100-240V AC, 47~63hz
Multiple alarm to support bit control
Alarm status indicator lamp
Photoelectric isolation RS-485 communication interface
8 stage program control
0-10MA
0-20MA
4-20MA
communication
Photoelectric isolation RS-485 communication interface
Call the police
Control output: 2 way relay
Alarm output: 2 way, relay
Other detailed parameters
Input signal range: 12 standard signal inputs.
Basic error: 0.1%FS + 1 words.
Measure AD:24 bits, 40Hz
Output DA:12 bits, 100KSPS
Input channel: 2 way
Control output: 2 way relay
Alarm output: 2 way, relay
Input impedance: when the voltage is greater than or equal to 500K, the current is less than 250 ohms.
Delivery channel: 2 way
Output Impedance (with Load Capacity): Current less than 500_ (Current has special requirements, can achieve 650 Euros, set
Time of shipment) relay AC220V/2A, DC30V/1A
Display mode: digital tube
Control output cycle: less than 1Hz
Communication protocol: MODBUS RTU (RS485 interface, two wire system)
Driving distance: 1200 meters
Check mode: no check, odd check, even check.
Baud rate: 4800960019200
Communication data format: one start bit, eight bit data bits, one stop bit.
Supply voltage: 100-240V AC (47~63Hz)
Isolation voltage: input, output, power three isolation, 2300 V AC 1 minutes.
Working conditions: temperature -20 ~ +50 C, humidity 10% ~ 90%RH
Storage conditions: temperature: -40 ~ +80 C; humidity: 10% ~ 90%RH
Outline size: 96*96mm, 96*48mm/48*96mm
DK2304S Outline size 96*96*90mm

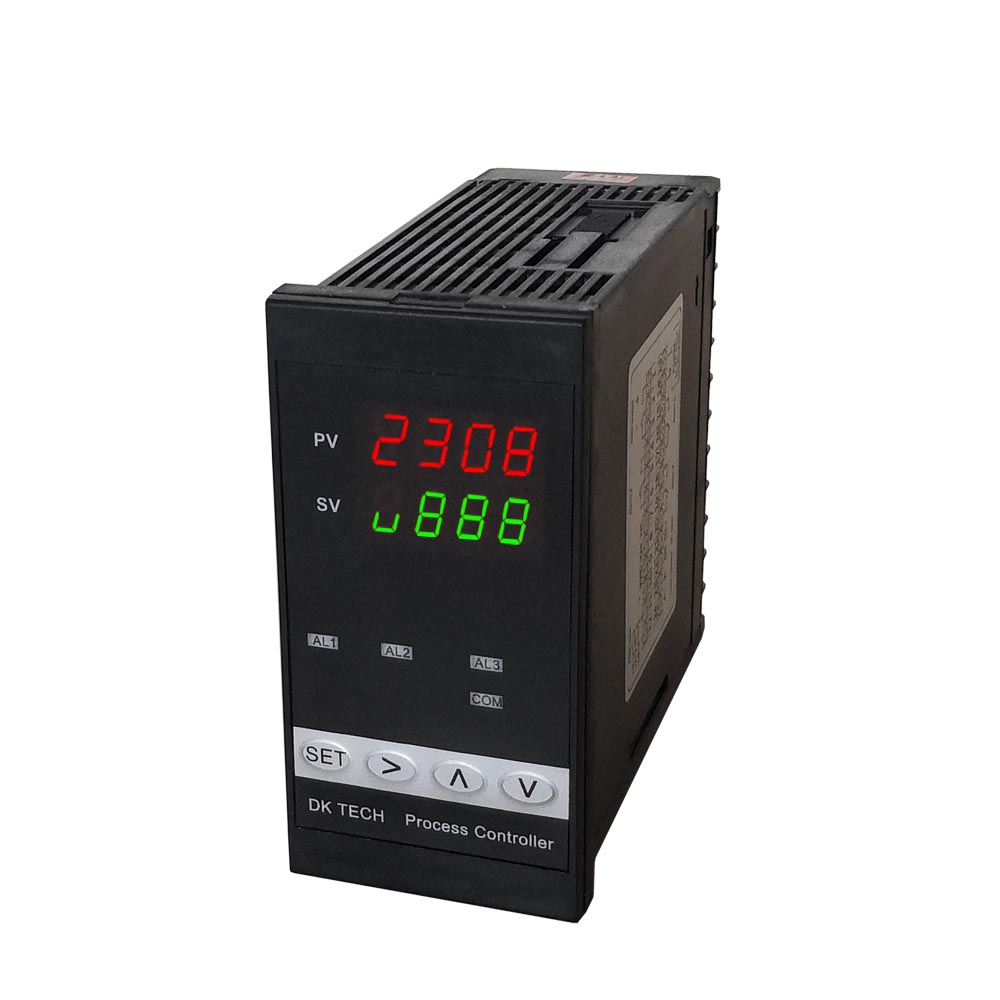

DK2308S Outline size 96*48*90mm

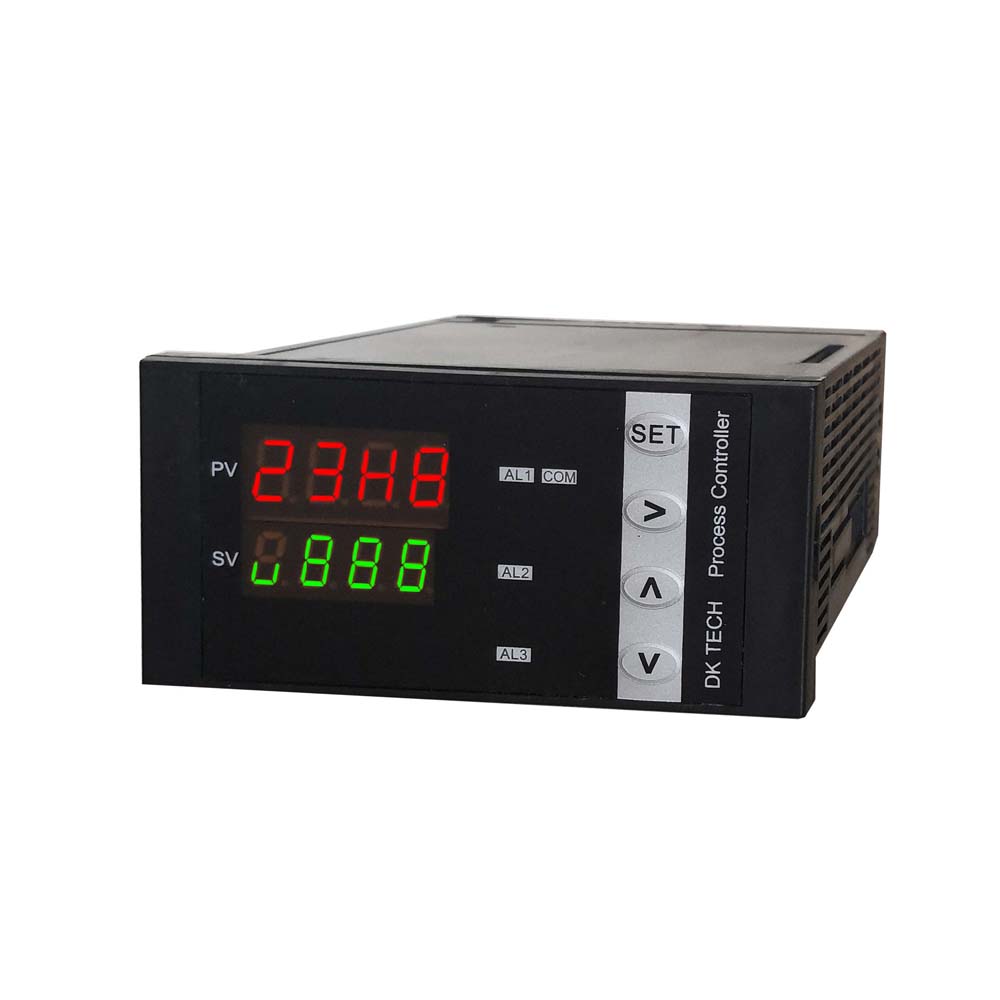

DK23H8S Outline size 48*96*90mm
