DK1100G AC/DC voltage/current isolated transducer module is an intelligent module which integrates AC/DC voltage and current signal acquisition, transducer and integration. It has the characteristics of high measurement accuracy, good stability, modular structure, flexible configuration, good linearity and strong anti-interference ability.
Product features

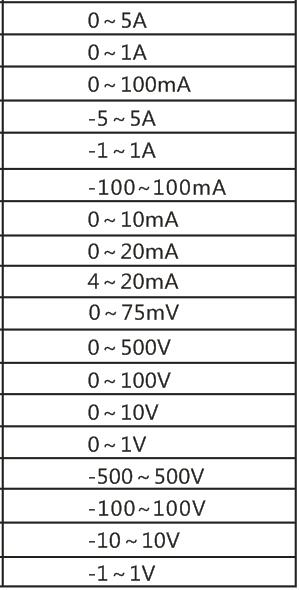

Support a variety of common industrial standard signal input;
True RMS measurement, high precision, good stability, strong anti-interference ability, standard 35mm guide rail installation;
DC24V/AC220V power supply optional.
Signal input, power supply, variable output three terminal isolation, isolation voltage 1500V AC.
Other detailed parameters
Comprehensive measurement accuracy: 0.8%
Ad speed: 200KSPS
Variable delivery accuracy: 16 bits.
DA speed: 10M SPS
Isolation voltage: input, output and power between the three 1500V AC 1 minutes.
Temperature drift: 50ppm
Electromagnetic compatibility: GB/T 18268 (IEC61326-1)
Ambient temperature: 0~50 C
Relative humidity: less than 85%RH, avoiding strong corrosive gases.
Power supply: DC24V/AC220V (+ 10%)
Power consumption: power consumption is less than 2.4W
Installation structure: 35mm DIN guide rail installation features
Selection size
Width * height * depth: 22.5*100*112mm
Example selection
DK1100G-AC-0A5-4MA20-IL:0-IH:5-OL:4-OH:20-DC24
The selection for DK1100G isolation transmitter, measuring AC, the input signal is 0~5A, the output signal is 4-20mA, the lower limit of the range is 0A, range 5A, the output limit is 4mA, the maximum output is 20mA (0A transmission output 4mA, 5A transmission output is 20mA), 24V DC power supply.
DK1100G-AC-0V500-0V10-AC220
The selection for DK1100G isolation transmitter, measuring AC, the input signal is 0-500v, the output signal is 0~10V, range of upper and lower limit to the default value, the output of the upper limit and the lower limit is the default value. Power supply to AC 220V.
