DK6000 series

DK6000D series voltage and ammeter digital display AC and DC high precision small true RMS measurement

DK6000D series voltage and ammeter, digital display AC and DC measurement, high precision true RMS measurement. The series includes four products: DK6004D, DK60H8D, DK6006D and DK6016D.
Online orders

Product features

It can expand the range freely.

Zero value, full value and decimal point can be set freely.

Display range: -19999-30000;

Multilevel digital filtering effectively eliminates interference and effectively eliminates non critical jumps.

It can realize alarm, control output, transmit output and communication function.

AC true RMS measurement

input

AC0~500V, AC0~5A, DC0~20MA or 4~20MA Holzer sensor signal input

output
0~20mA、4~20mA

communication

Photoelectric isolation RS-485 communication interface

alarm
2 way relay alarm

Other detailed parameters

AC voltage / current measurement accuracy: 24 bit true RMS measurement

AC voltage / current display range: -19999 ~ 30000

Working power supply: AC85 ~ 260V 5W

Working temperature: 0 ~ + 50 C; less than 85%RH

Relay contact capacity: AC220V/3A

Relay contact life: 105 times

Variable output accuracy: 16 bits + 0.2%

Communication output: photoelectric isolation RS-485 communication interface

Welcome to obtain product information.

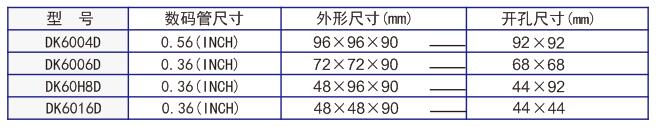

Selection size

Example selection

Users need to measure AC voltage from 0 to 380V. They need to alarm when the measured voltage is higher than 400V, when the measured voltage is lower than 360V, and change the voltage from 0 to 380V to 4 to 20mA. The power supply of the system is AC220V, and 485 communication is required.

The instrument selection is: DK6004D-AC500V-4MA20-R-R-S
